2012 Ford F-550 Chassis Cab
1
/
1

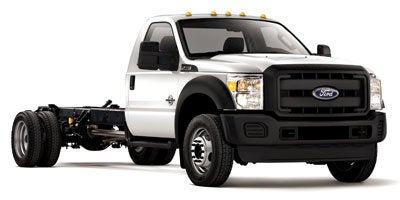

2012 Ford F-550 Chassis Cab XL
Available
-
$29,999 INTERNET PRICE
- Dealer Doc Fee: +$699
*Please Note: We turn our inventory daily, please check with the dealer to confirm vehicle availability.
-
-
-
-
$29,999 INTERNET PRICE
- Dealer Doc Fee: +$699
*Please Note: We turn our inventory daily, please check with the dealer to confirm vehicle availability.
-
-
-
-
Visit our Store
- All American Ford in Old Bridge
-
3698 Route 9 South
Old Bridge, NJ 08857
- Sales: 848-458-5352
- Service: 848-458-5354
- Parts: 848-458-5351
Vehicle Information
VIN:
1FDUF5HY7CEA89964
Stock #:
US12778
Model Code:
F5H
-
Body Style 2 Door Chassis Truck -
Exterior Color White
-
Mileage 137,026
-
Engine 6.8L V10 30V MPFI SOHC -
Transmission Automatic -
Fuel Type Gas
All Features
- 19.5" argent painted steel wheels
- 225/70R19.5G BSW tires -inc: (2) front all-season & (4) rear all-season tires
- 3-blink lane change signal
- Black Door Handles
- Dual beam jewel headlights
- Fixed Rear Window
- Front fender vents
- Front license plate bracket
- Roof clearance lights
- Solar tinted glass
- Underhood service light
- Variable intermittent windshield wipers
- 11.5" day/night rearview mirror
- Auxiliary pwr point
- Color-coordinated instrument panel -inc: glove box, (4) air registers w/positive shutoff, pwr point & (4) upfitter switches
- Color-coordinated molded cloth headliner
- Color-coordinated scuff plates
- Dash-top tray
- Door activated dome lamp w/delay, I/P switch operation
- Dual color-coordinated coat hooks
- Dual front grab handles
- Dual map lights
- Front passenger roof ride handles
- Inside hood release
- Instrumentation -inc: multifunction switch message center w/ice blue lighting
- Manual driver lumbar support
- Oil minder system
- Tilt & telescoping steering wheel/column
- (2) front tow hooks
- (40) gallon aft-axle fuel tank
- 155-amp HD alternator
- 7-wire trailer tow harness w/relays, blunt cut & labeled
- 78 amp/hr 750 CCA battery
- Dual rear wheels
- Four wheel drive
- Front/rear stabilizer bars
- HD gas shock absorbers
- Manual transfer case & hubs
- Mono-beam front axle w/coil spring suspension
- Pwr 4-wheel disc brakes w/hydro boost
- Pwr steering w/steering damper
- Rear auxiliary springs
- Stationary elevated idle control (SEIC)
- Anti-lock braking system (ABS)
- Child tethers on all passenger seats
- Color-coordinated 3-point safety belts w/front outboard height adjustment
- Driver/front passenger frontal, side & curtain airbags
- Dual-note electric horn
- Passenger side airbag deactivation switch
- SOS post crash alert system
6.8L SOHC EFI TRITON 30-VALVE V10 ENGINE
- (STD)
- Four Wheel Drive
- Tow Hooks
- Power Steering
- 4-Wheel Disc Brakes
- Tires - Front All-Season
- Tires - Rear All-Season
- Steel Wheels
- Intermittent Wipers
- Variable Speed Intermittent Wipers
- AM/FM Stereo
- A/C
- Split Bench Seat
- Driver Adjustable Lumbar
- Adjustable Steering Wheel
- Front Reading Lamps
- Traction Control
- ABS
- Driver Air Bag
- Passenger Air Bag
- Front Side Air Bag
- Front Head Air Bag
- Passenger Air Bag On/Off Switch
- Auxiliary Audio Input
- Cruise Control
- Power Door Locks
- Security System
- Cold Cranking Amps @ 0° F (Primary): 750
- Maximum Alternator Capacity (amps): 157
- Maximum Alternator Watts: 2100
- Total Cooling System Capacity (qts): 27.5
- Gross Axle Wt Rating - Front (lbs): 5200
- Gross Axle Wt Rating - Rear (lbs): 13660
- Curb Weight - Front (lbs): 3872
- Curb Weight - Rear (lbs): 2943
- Gross Vehicle Weight Rating Cap (lbs): 18000
- Suspension Type - Front: Coil Spring
- Suspension Type - Rear: Multi-Leaf
- Spring Capacity - Front (lbs): 5200
- Spring Capacity - Rear (lbs): 13660
- Axle Type - Front: Monobeam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front (lbs): 7000
- Axle Capacity - Rear (lbs): 13660
- Axle Ratio (:1) - Front: 4.88
- Axle Ratio (:1) - Rear: 4.88
- Shock Absorber Diameter - Front (mm): 35
- Shock Absorber Diameter - Rear (mm): 35
- Stabilizer Bar Diameter - Front (in): 1.26
- Stabilizer Bar Diameter - Rear (in): 1.06
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 14.5 x 0.5
- Rear Brake Rotor Diam x Thickness (in): 15.4 x 0.5
- Front Tire Order Code: TFB
- Rear Tire Order Code: TFB
- Front Tire Size: 225/70R19.5G
- Rear Tire Size: 225/70R19.5G
- Front Tire Capacity (lbs): 3750
- Rear Tire Capacity (lbs): 3970
- Revolutions/Mile @ 45 mph - Front: 653
- Revolutions/Mile @ 45 mph - Rear: 653
- Revolutions/Mile @ 45 mph - Spare: - TBD -
- Front Wheel Size (in): 19.5 x 6.0
- Rear Wheel Size (in): 19.5 x 6.0
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 17.3
- Steering Ratio (:1), At Lock: - TBD -
- Turning Diameter - Curb to Curb (ft): 42.3
- Turning Diameter - Wall to Wall (ft): 44.2
- Frame Type: Ladder
- Fuel Tank Capacity, Approx (gal): 40.0
- Fuel Tank Location: Aft-Axle
- Wheelbase (in): 140.8
- Length, Overall w/o rear bumper (in): 226.5
- Width, Max w/o mirrors (in): 93.9
- Height, Overall (in): 80.5
- Overhang, Front (in): 38.1
- Overhang, Rear w/o bumper (in): 47.6
- Front Bumper to Back of Cab (in): 118.9
- Cab to Axle (in): 60.0
- Cab to End of Frame (in): 107.6
- Ground to Top of Frame (in): 33.8
- Frame Width, Rear (in): 34.2
- Ground Clearance, Front (in): - TBD -
- Ground Clearance, Rear (in): 8.4
- Passenger Capacity: 3
- Front Head Room (in): 40.7
- Front Leg Room (in): 41.1
- Front Shoulder Room (in): 68.0
- Front Hip Room (in): 67.6
- Vehicle Name: Ford Super Duty F-550 DRW
- Body Style: Regular Cab Chassis Cab
- Body Code: 141" WB
Vehicles You Might Like

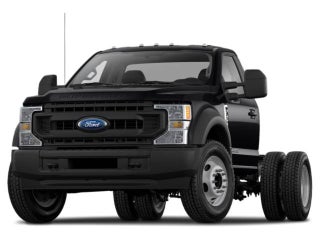

2022 Ford F-600 Chassis Cab XL
